Wallbarn MetalPad are a 100% full metal pedestal, with no plastic or rubber elements: • Solid stem, not hollow, for increased strength• Normal weight tolerance of over 1 tonne each, break point over 2 tonnes• Large height range from 25mm up to 500mm The Wallbarn Class A adjustable pedestals have been developed from scratch, not adapted from products used in different fields.
Adjustable pedestals and rail system for Fire -Rated exterior paving & decking systems Class A1 pedestals meet fire testing standard BSEN13501-1.
Non-combustible, fully adjustable, Class A1 & A2-s1, d0 pedestals & rails, specifically designed for high-rise balconies, terraces and flat roofs.
Class A1 Fire-Rated Paving Pedestals
Class A2-S1, d0 Fire-Rated Decking Pedestals
Class A2-S1,d0 Rail System

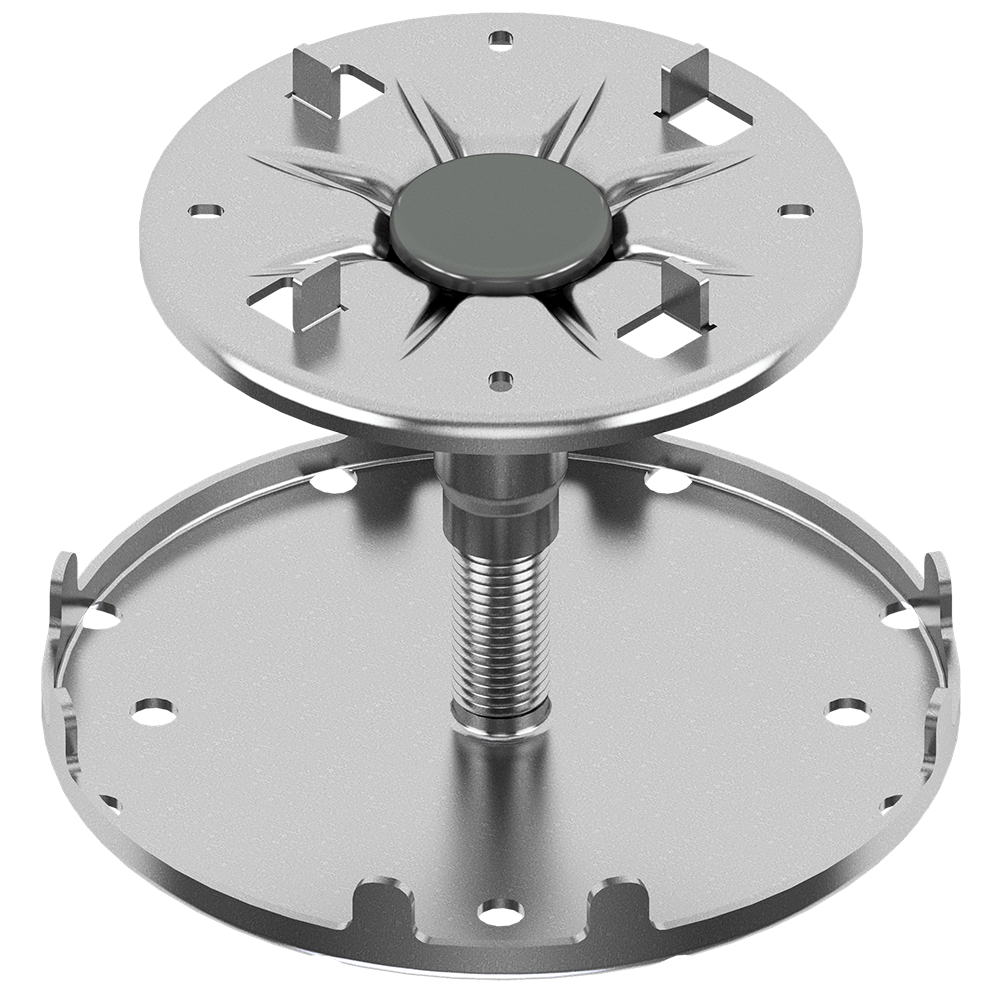

Non-combustible, fully adjustable, Class A1 pedestals, specially designed for high-rise balconies, terraces and flat roofs. Key Benefits: Non-combustible to BS EN 13501-1 Fire classification of construction products & building elements Designed for exterior applications Made from 100% Class A1 thick galvanised steel No plastic or rubber components Self-levelling headpiece up to 5% movement in all directions* Solid stem for superior weight tolerance Over 1,000kg loading per pedestal 150mm diameter circular base plate Millimetre-precise height adjustment Bespoke headpieces for paving and decking Heights range from 25mm up to 300mm. Complies fully with British Standard BS 8579

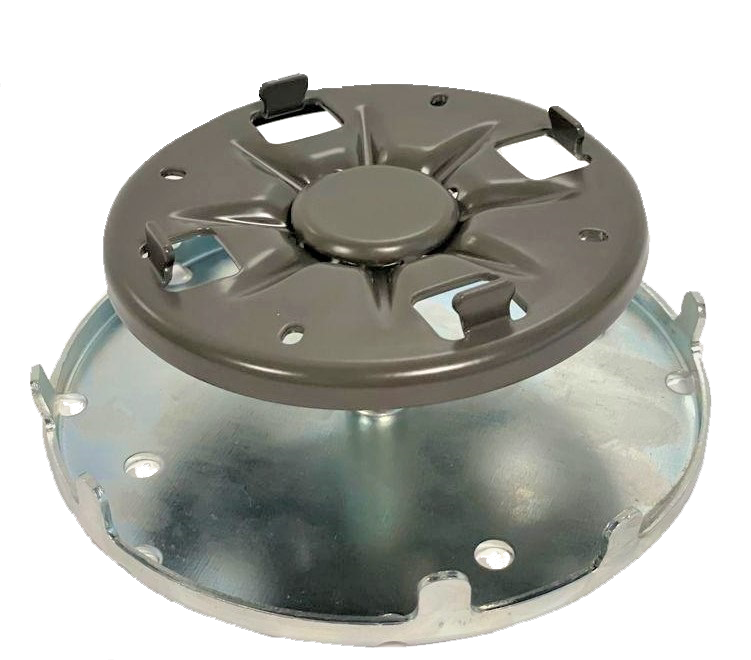

Non-combustible, fully adjustable, Class A2-S1, d0 pedestals , specifically designed for high-rise balconies, terraces and flat roofs. Key Benefits Classified A2-s1,d0 in accordance with BS EN 13501-1:2018 Complies to BS EN ISO 1716:2018 Physically tested in accordance with procedure specified in BS EN 13823:2020 Designed for exterior applications Made from 100% thick galvanised steel No plastic or rubber components Self-levelling headpiece up to 5% movement in all directions Solid stem for superior weight tolerance Over 1,000kg loading per pedestal 150mm diameter circular base plate Millimetre-precise height adjustment Bespoke headpiece for decking Height range from 25mm up to 300mm

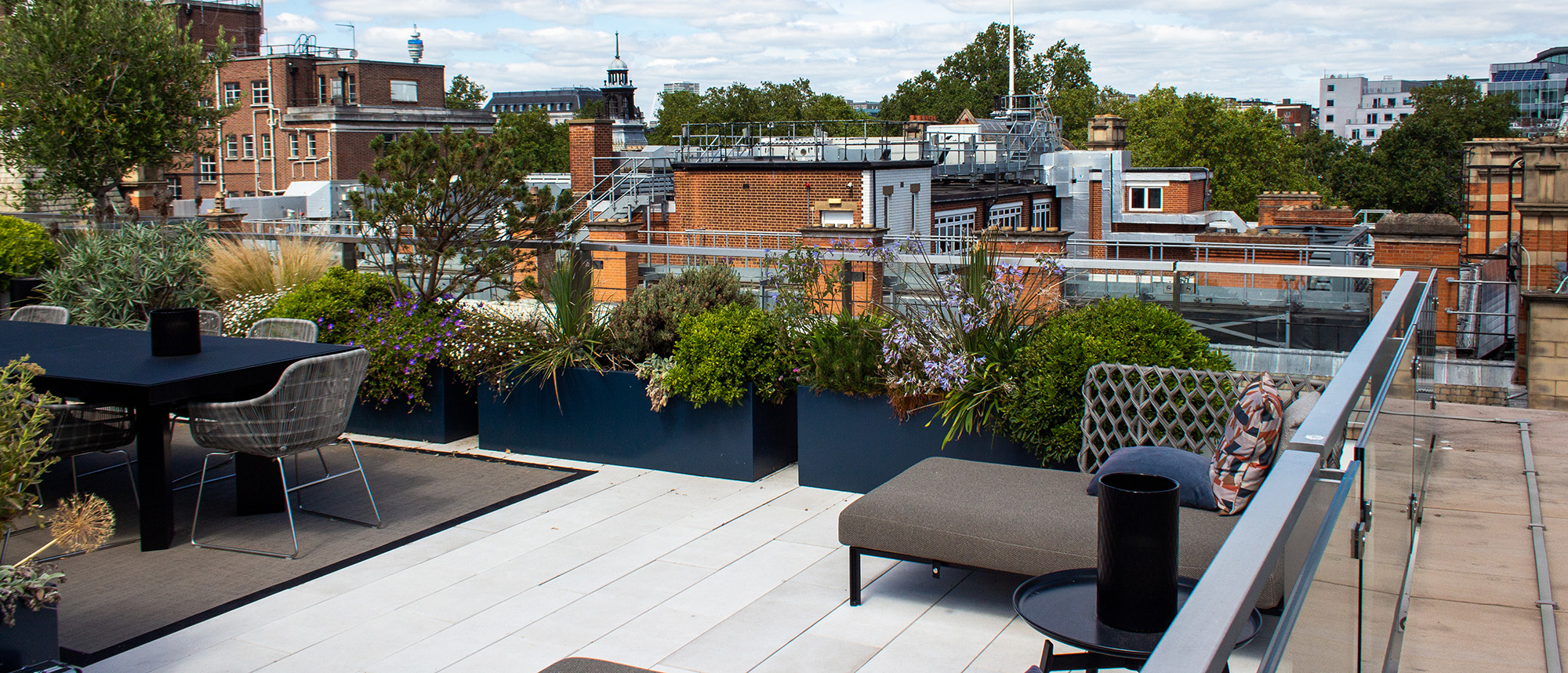

Here are just a few recent projects completed using the Wallbarn Class A Fire-Rated substructure support systems; Designed for high-rise balconies, terraces, flat roofs and many more residential and commercial properties.
Non-combustible, fully adjustable, Class A2-S1, d0 pedestals, specially designed for high-rise balconies, terraces and flat roofs
Designed for exterior applications. Made from 100% thick galvanised steel
With a range of heights from 25mm up to 300mm, achieving your ideal height is easy

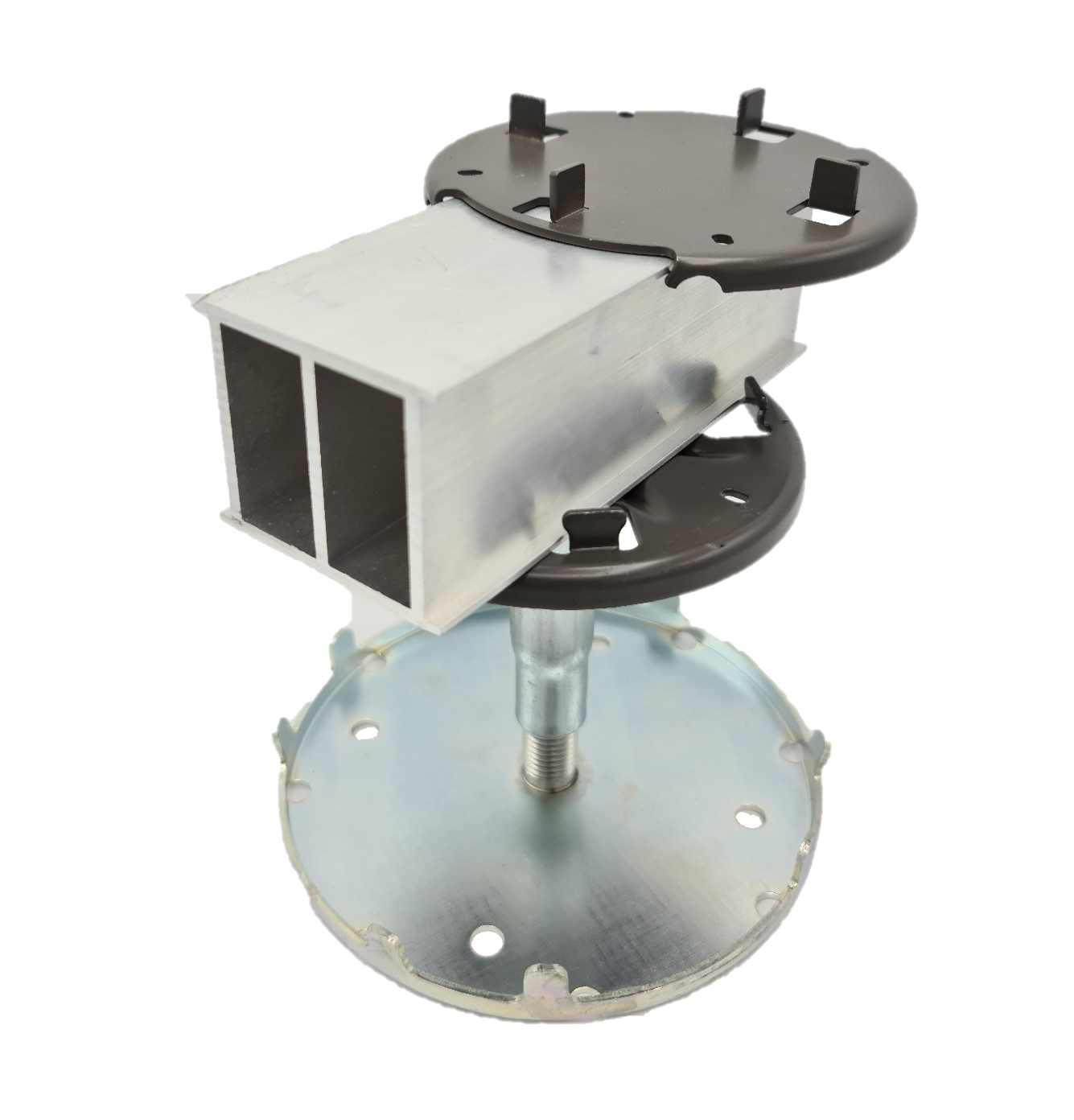

Profiled Aluminium rail joists click securely onto MetalPad. Specifically profiled aluminium rails 25mm or 50mm click onto the headpiece without need for screws, drills or mechanical fixings ensuring a secure connection
Physically tested in accordance with procedure specified in BS EN 13823:2020
Complies fully with British Standard BS 8579
Integrated Pedestals & Rail Suspension System for porcelain tiles, ceramic planks and decking. Creates lateral stability across area by reducing movement. Modular system: Aluminium rail which fixes to Megapads or Minipads using a special rail clip. Additional headpiece for tiling and paving applications fixes to upper side of rail.
With Wallbarn substructures, any place can be turned in to an oasis of calm.
